Dual-Fuel Powered Ship Gas Supply Skid

Informações detalhadas

Descrição do produto

Informações detalhadas

Descrição do produto

It integrates multiple functions such as tank filling, tank pressure regulation, LNG fuel gas supply, safe venting, ventilation, and can provide fuel gas to dual-fuel engines and generators sustainably and stably.

Product features
Specifications
Ask now

Product features

Single-channel gas supply system design, economical and simple.

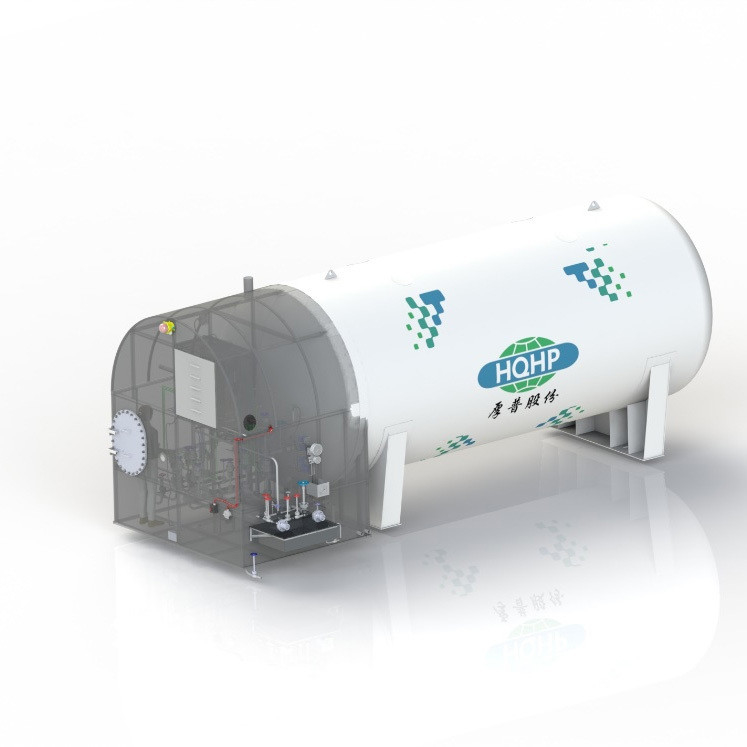

LNG dual-fuel powered ship gas supply skid

● Approved by CCS.
● Use circulating water/river water to heat LNG to reduce system energy consumption.
● With the function of tank pressure regulation, it can keep the tank pressure stable.

● The system is equipped with an economical adjustment system to improve the economy of fuel utilization.
● A wide range of applications, the system gas supply capacity can be customized according to user needs.

Specifications

Model	GS400 Series
Dimension (L×W×H)	9150×2450×2800 (mm)	8600×2450×2950 (mm)	7800×3150×3400 (mm)	8300×3700×4000 (mm)
Tank capacity	15 m³	20 m³	30 m³	50 m³
Gas supply capacity	≤400Nm³/h
Design pressure	1.6MPa
Working pressure	≤1.0Mpa
Design temperature	-196～50℃
Meduim	LNG
Ventilation capacity	30 times/H
Note: * Appropriate fans are required to meet the ventilation capacity.

Application

This product is suitable for inland dual-fuel powered ships and dual-fuel powered sea-going ships that use LNG as an optional fuel, including bulk carriers, port ships, cruise ships, passenger ships and engineering ships.

mission

Efficient use of energy to improve the human environment
