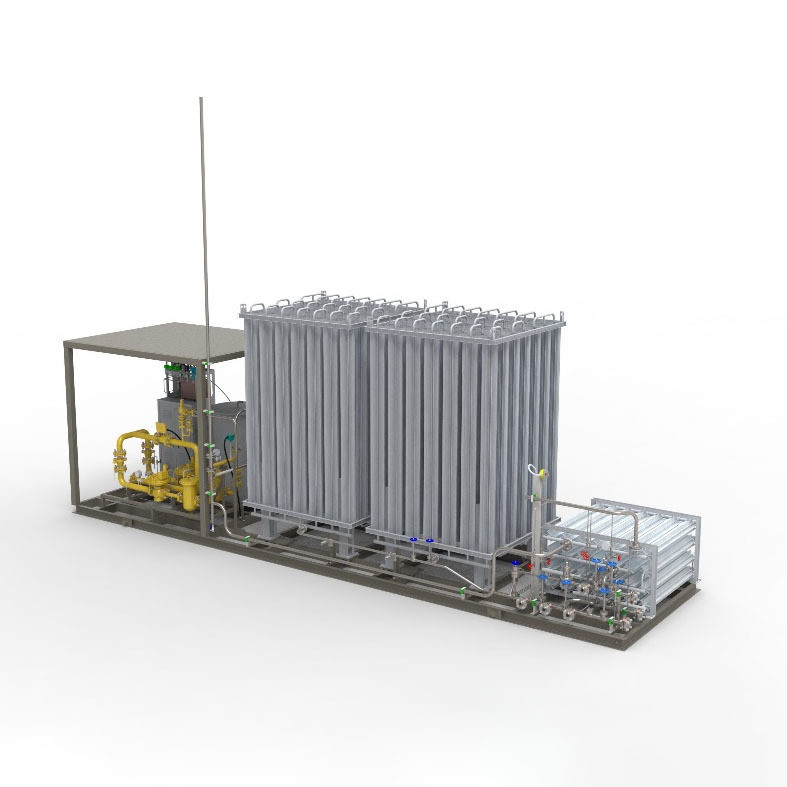

Unmanned LNG Regasification Skid
  • Nome

Unmanned LNG Regasification Skid

Informações detalhadas
Descrição do produto
Informações detalhadas
Descrição do produto

The products are mainly composed of unloading pressurized gasifier, main air temperature gasifier, electric heating water bath heater, low temperature valve, pressure sensor, temperature sensor, gas probe, pressure regulating valve, filter, turbine flow meter, emergency stop button, low temperature / normal temperature pipeline and other systems.

  • Product features
  • Specifications
  • Ask now

Product features

Comprehensive security protection design, meet GB/CE standards.

Unattended LNG gasification skid

● Perfect quality management system, reliable product quality, long service life.
● Unattended integrated control system with SMS reminder function
● Optional Integrated Video Surveillance System (CCTV).
● Standard 20 to 45 feet shape structure, overall transportation.

● On-site installation is fast and fast and can be relocated at any time.
● With LNG unloading supercharge, gasification, pressure regulation, metering and other functions.
● Configure special instrument panel installation pressure, liquid level, temperature and other instruments.
● Standardized assembly line production mode, the annual output > 300 sets.

Specifications

Design temperature

-196~50°C

Ambient temperature

-30~50°C
Design pressure

1.6 MPa

Device form factor

6000~12000mm
Outlet pressure

0.05~0.4

Equipment weight

2000~5000kg

Recommended amount of gasification

500/600/700/800/1000/1500Nm³/h

Odorizing device

The volume of the odorization tank is 30L, and the single pump is 20mg/min

Metering devices

Turbine flowmeter accuracy 1.5 class

Control system

PLC+ remote monitoring

Application Scenarios

This product is used in unattended LNG gasification station, gasification capacity 500~1500Nm3/h.
